Where performance meets value.

It's no wonder why SummaCut is one of the most popular series of vinyl cutters ever built. By combining world renowned craftsmanship with real-world affordability, Summa managed to create a top-of-the-line cutter series that tops all other competitors.

SummaCut Series Vinyl Cutter Hero Image

Features

Powerful technology at an affordable price.

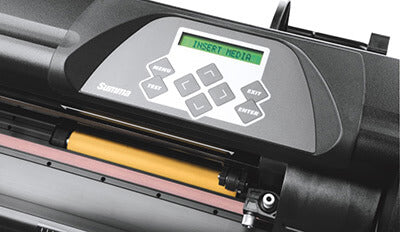

SummaCut Series Control Panel

Intuitive Control Panel

The large, easy-to-use control panel allows the operator to quickly change the speed, pressure, plot mode and other settings, perform test cuts, plus much more.

SummaCut Series Control Panel Icon
SummaCut Series Optical Positioning

Optical Positioning

OPOS-X contour cutting alignment enables you to die-cut valuable printed vinyl graphics with complete confidence and ease.

SummaCut Series Optical Positioning Icon

SummaCut Series High-speed Cutting Head

High-speed Cut Head

The newly designed high-speed cutting head features incredible accuracy for reliable and effortless vinyl cutting.

SummaCut High-speed Cutting Head Icon

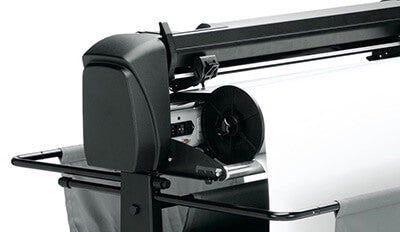

SummaCut Series Media System

Intelligent Media System

Integrated media rollers and roll end flanges load vinyl straight and keep media on track, even when cutting at top speed.

SummaCut Series Media System Icon

Models

Choose the right size for the job.

SummaCut D75 Vinyl Cutter
30 inch (76 cm) vinyl and contour cutter
SummaCut D75 Vinyl Cutter
30-inch
(76cm)

$2,495

Lease for as low as $57/mo.

SummaCut D120 Vinyl Cutter
48 inch (122 cm) vinyl and contour cutter
SummaCut D120 Vinyl Cutter
48-inch
(122cm)

$3,995

Lease for as low as $94/mo.

SummaCut D140 Vinyl Cutter
54 inch (137 cm) vinyl and contour cutter
SummaCut D140 Vinyl Cutter
54-inch
(137cm)

$4,995

Lease for as low as $114/mo.

SummaCut D160 Vinyl Cutter
64 inch (164 cm) vinyl and contour cutter
SummaCut D160 Vinyl Cutter
64-inch
(163cm)

$6,495

Lease for as low as $148/mo.

Shop SummaCut Accessories and Supplies Banner

Specifications

Model SummaCut D75 Logo SummaCut D120 Logo SummaCut D140 Logo SummaCut D160 Logo
Cut Type Drag knife with TurboCut and Tangential Emulation Modes
Tool Compatability Blade, Pen, Pounce Tool
Cut Widths D75 29.2-inch (74.2 cm) D120 47.2-inch (120 cm) D140 53.1-inch (135 cm) D160 62.2-inch (158 cm)
Cut Speed All SummaCut models cut at speeds up to 44 inches (112 cm) per second diagonal
Axial Speed Up to 2 G
Maximum Acceleration Up to 3 G diagonal
Repeatability Within ± 0.004 in. (0.1 mm) on plots up to 26 ft. (8 m) long
Tracking 164 ft. (50 m) long
Cut-Force 0-400 grams of down-force, in 5 gram increments
Replot Memory 4 MB (buffer size: 16 MB)
Display Languages English; French; German; Dutch; Italian; Spanish; Polish
Connectivity USB
Power Requirements AC 100V to 240V ±10% 50-60Hz, 85 VA maximum
Dimensions D75 45.3 (W) x 13.8 (D) x 11.8 (H) in. 115 (W) x 35 (D) x 30 (H) cm D120 63 (W) x 26.8 (D) x 44.1 (H) in. 160 (W) x 68 (D) x 112 (H) cm D140 68.9 (W) x 26.8 (D) x 45.1 (H) in. 175 (W) x 68 (D) x 114.5 (H) cm D160 77.9 (W) x 26.8 (D) x 45.1 (H) in. 198 (W) x 68 (D) x 114.5 (H) cm
Weight D75 37 lbs (17 kg) D120 92 lbs (42 kg) D140 106 lbs (48 kg) D160 119 lbs (54 kg)
Operating Temperature 59˚ to 95˚F (15˚ to 35˚C)
Standard Accessories WinPlot or MacSign Cut Software, CutterControl Parameter Software, CD w/ Manuals and Drivers, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), 1 Spare Fuse, Standard 36˚ Blade Holder, 2 Standard 36˚ Blades, Cut-off Knife (Manual Slitter), 2 Cut-off Razor Blades.
Optional Accessories Stand and basket for SummaCut D75
Warranty (USA) Two-year parts and labor limited warranty, toll-free technical support
SummaCut D75 Logo SummaCut D120 Logo SummaCut D140 Logo SummaCut D160 logo
Model SummaCut D75 Logo SummaCut D120 Logo SummaCut D140 Logo SummaCut D160 Logo
Cut Type Drag knife with TurboCut and Tangential Emulation Modes
Tool Compatability Blade, Pen, Pounce Tool
Cut Widths D75 29.2-inch (74.2 cm) D120 47.2-inch (120 cm) D140 53.1-inch (135 cm) D160 62.2-inch (158 cm)
Cut Speed All SummaCut models cut at speeds up to 44 inches (112 cm) per second diagonal
Axial Speed Up to 2 G
Maximum Acceleration Up to 3 G diagonal
Repeatability Within ± 0.004 in. (0.1 mm) on plots up to 26 ft. (8 m) long
Tracking 164 ft. (50 m) long
Cut-Force 0-400 grams of down-force, in 5 gram increments
Replot Memory 4 MB (buffer size: 16 MB)
Display Languages English; French; German; Dutch; Italian; Spanish; Polish
Connectivity USB
Power Requirements AC 100V to 240V ±10% 50-60Hz, 85 VA maximum
Dimensions D75 45.3 (W) x 13.8 (D) x 11.8 (H) in. 115 (W) x 35 (D) x 30 (H) cm D120 63 (W) x 26.8 (D) x 44.1 (H) in. 160 (W) x 68 (D) x 112 (H) cm D140 68.9 (W) x 26.8 (D) x 45.1 (H) in. 175 (W) x 68 (D) x 114.5 (H) cm D160 77.9 (W) x 26.8 (D) x 45.1 (H) in. 198 (W) x 68 (D) x 114.5 (H) cm
Weight D75 37 lbs (17 kg) D120 92 lbs (42 kg) D140 106 lbs (48 kg) D160 119 lbs (54 kg)
Operating Temperature 59˚ to 95˚F (15˚ to 35˚C)
Standard Accessories WinPlot or MacSign Cut Software, CutterControl Parameter Software, CD w/ Manuals and Drivers, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), 1 Spare Fuse, Standard 36˚ Blade Holder, 2 Standard 36˚ Blades, Cut-off Knife (Manual Slitter), 2 Cut-off Razor Blades.
Optional Accessories Stand and basket for SummaCut D75
Warranty (USA) Two-year parts and labor limited warranty, toll-free technical support
